Plotting networks with python#

In some instances a nice way to visualize relationship of many variables is to plot it as a network of notes.

Dataset#

I will be using a temperature dataset from kaggle.

Tools#

networkx is a handy python package for plotting anything network-related
pingouin is a package with statistical tools

from groo.groo import get_root
import pandas as pd
import os
import seaborn as sns
import numpy as np
import pingouin as pg
import matplotlib.pyplot as plt
import matplotlib
import matplotlib.cm as cm
from mpl_toolkits.axes_grid1 import make_axes_locatable
import networkx as nx

Load and clean data#

# Load data
rawdf = pd.read_csv(os.path.join(get_root(".weather"), "data", "city_temperature.csv"))

# Select a few countries and few years
countries = ["Togo", "Canada", "Uganda", "Slovakia", "Russia", "Australia", "Argentina"]

# data between 2000 and 2005, neither included
rawdf = (rawdf.loc[rawdf["Country"].isin(countries), ]
        .query("Year>2000 & Year<2002"))

# Average across cities
df = (rawdf.groupby(by=["Country", "Year", "Month", "Day"])
        .mean()
        .reset_index())

# Create new var for day within each year
df["AnnDay"] = df.groupby(["Country", "Year"]).cumcount()
df = df.drop(columns=["Month", "Day"])

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
Cell In [2], line 2
# Load data
----> 2 rawdf = pd.read_csv(os.path.join(get_root(".weather"), "data", "city_temperature.csv"))
# Select a few countries and few years
countries = ["Togo", "Canada", "Uganda", "Slovakia", "Russia", "Australia", "Argentina"]

File ~/anaconda3/envs/python3.10/lib/python3.10/site-packages/pandas/io/parsers/readers.py:912, in read_csv(filepath_or_buffer, sep, delimiter, header, names, index_col, usecols, dtype, engine, converters, true_values, false_values, skipinitialspace, skiprows, skipfooter, nrows, na_values, keep_default_na, na_filter, verbose, skip_blank_lines, parse_dates, infer_datetime_format, keep_date_col, date_parser, date_format, dayfirst, cache_dates, iterator, chunksize, compression, thousands, decimal, lineterminator, quotechar, quoting, doublequote, escapechar, comment, encoding, encoding_errors, dialect, on_bad_lines, delim_whitespace, low_memory, memory_map, float_precision, storage_options, dtype_backend)
kwds_defaults = _refine_defaults_read(
   dialect,
   delimiter,
   (...)
   dtype_backend=dtype_backend,
)
kwds.update(kwds_defaults)
--> 912 return _read(filepath_or_buffer, kwds)

File ~/anaconda3/envs/python3.10/lib/python3.10/site-packages/pandas/io/parsers/readers.py:577, in _read(filepath_or_buffer, kwds)
_validate_names(kwds.get("names", None))
# Create the parser.
--> 577 parser = TextFileReader(filepath_or_buffer, **kwds)
if chunksize or iterator:
   return parser

File ~/anaconda3/envs/python3.10/lib/python3.10/site-packages/pandas/io/parsers/readers.py:1407, in TextFileReader.__init__(self, f, engine, **kwds)
   self.options["has_index_names"] = kwds["has_index_names"]
self.handles: IOHandles | None = None
-> 1407 self._engine = self._make_engine(f, self.engine)

File ~/anaconda3/envs/python3.10/lib/python3.10/site-packages/pandas/io/parsers/readers.py:1661, in TextFileReader._make_engine(self, f, engine)
   if "b" not in mode:
       mode += "b"
-> 1661 self.handles = get_handle(
   f,
   mode,
   encoding=self.options.get("encoding", None),
   compression=self.options.get("compression", None),
   memory_map=self.options.get("memory_map", False),
   is_text=is_text,
   errors=self.options.get("encoding_errors", "strict"),
   storage_options=self.options.get("storage_options", None),
)
assert self.handles is not None
f = self.handles.handle

File ~/anaconda3/envs/python3.10/lib/python3.10/site-packages/pandas/io/common.py:859, in get_handle(path_or_buf, mode, encoding, compression, memory_map, is_text, errors, storage_options)
elif isinstance(handle, str):
   # Check whether the filename is to be opened in binary mode.
   # Binary mode does not support 'encoding' and 'newline'.
   if ioargs.encoding and "b" not in ioargs.mode:
       # Encoding
--> 859         handle = open(
           handle,
           ioargs.mode,
           encoding=ioargs.encoding,
           errors=errors,
           newline="",
       )
   else:
       # Binary mode
       handle = open(handle, ioargs.mode)

FileNotFoundError: [Errno 2] No such file or directory: '/data/drive/postdoc/oz-website/articles/plotting_graphs_with_python/data/city_temperature.csv'

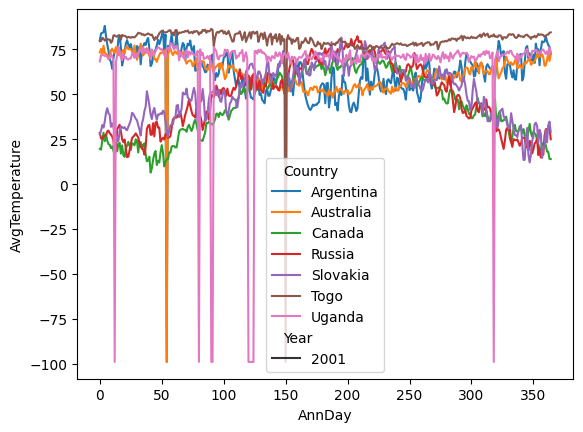

Run some basic plotting to get an overview of the data#

It seems like there are some missing data.

ax = sns.lineplot(data=df, x="AnnDay", y="AvgTemperature", hue="Country", style="Year")

../../_images/plotting_graphs_with_python_5_0.png

Clean data#

I will just remove the -99 values and interpolate the time series. To do this, I will go back to the rawdf since data were already averaged.

# Interpolate missing data
rawdf["AvgTemperature"] = (rawdf["AvgTemperature"]
                           .replace(-99, np.nan)
                           .interpolate())

# Average across cities
df = (rawdf.groupby(by=["Country", "Year", "Month", "Day"])
        .mean()
        .reset_index())

# Create new var for day within each year
df["AnnDay"] = df.groupby(["Country", "Year"]).cumcount()
df = df.drop(columns=["Month", "Day"])

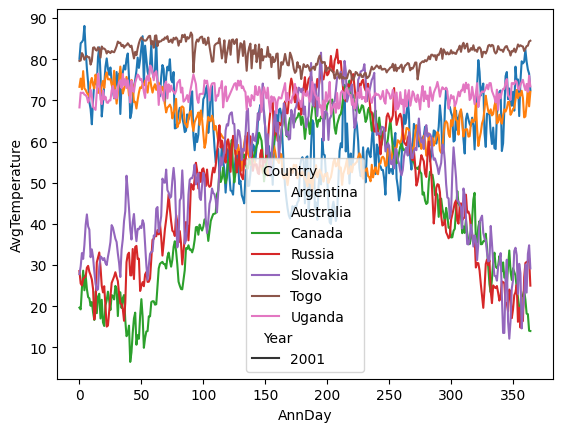

# Plot again
ax = sns.lineplot(data=df, x="AnnDay", y="AvgTemperature", hue="Country", style="Year")

/tmp/ipykernel_1139016/1633926191.py:8: FutureWarning: The default value of numeric_only in DataFrameGroupBy.mean is deprecated. In a future version, numeric_only will default to False. Either specify numeric_only or select only columns which should be valid for the function.
  .mean()

../../_images/plotting_graphs_with_python_7_1.png

# Rearrange data so that each column is Country-Year combination
df = df.pivot(index="AnnDay", values="AvgTemperature", columns=["Country", "Year"])
df.columns = [x+str(y) for  (x, y) in df.columns.values]

Calculating correlation coefficients#

I will be using two methods:

Pearson correlation - correlates every pair of variables
Partial Pearson correlation - takes the coveriance of other variables into account

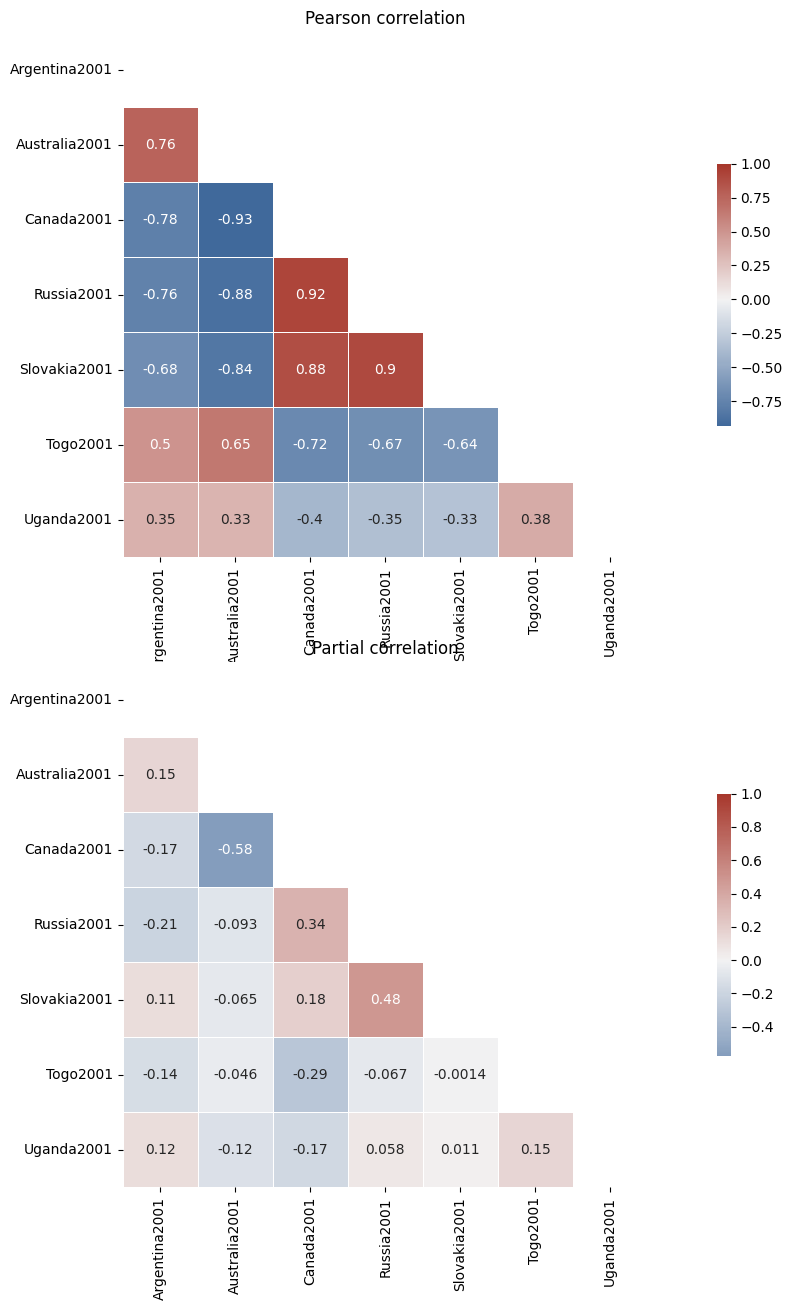

Plot correlations using standard heatmap plot#

Partial correlation is included in pandas as the pcorr() method if you have the pingouin package installed only. For now it can only perform Pearson correlation, although an issue has been reaise to include Spearman

## Standard correlation
cdf = df.corr(method="pearson")

## Partial correlation
pdf = df.pcorr()

## plot
f, ax = plt.subplots(2,1,figsize=(18, 15))

# Generate a mask for the upper triangle
mask = np.triu(np.ones_like(cdf, dtype=bool))

# Generate a custom diverging colormap
cmap = sns.diverging_palette(250, 15, s=75, l=40,
                            n=9, center="light",
                            as_cmap=True)
ax[0]= sns.heatmap(cdf, mask=mask, cmap=cmap, vmax=1, center=0, ax=ax[0],
            square=True, annot=True,linewidths=.5, cbar_kws={"shrink": .5})
ax[0].set_title("Pearson correlation")

ax[1]= sns.heatmap(pdf, mask=mask, cmap=cmap, vmax=1, center=0, ax=ax[1],
            square=True, annot=True,linewidths=.5, cbar_kws={"shrink": .5})
ax[1].set_title("Partial correlation")

Text(0.5, 1.0, 'Partial correlation')

../../_images/plotting_graphs_with_python_11_1.png

Plot the data as a graph#

Here are some of the features that would be nice:

the color and width of the edges should refelct the strength of the correlation between the connecting nodes
the correlations for the full correlation are quite high, so I will only show higher than 0.8 or lower than -0.8

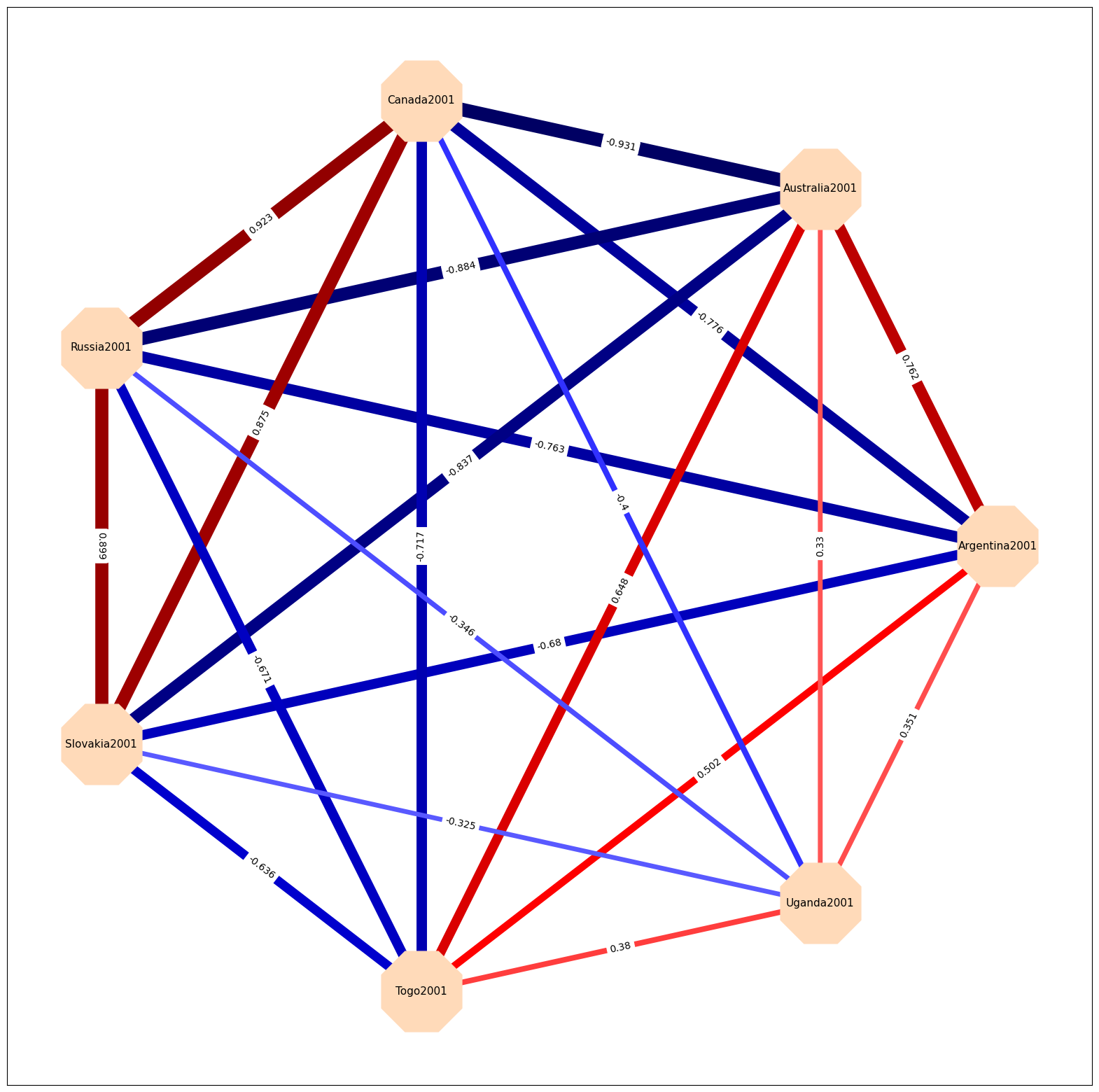

Full correlation graph#

The networkx package has a lot of different layout options, see here, here I am just using circular layout.

Graph properties
node_shape is defined by matplotlib markers, see here edge_color can be either a single color for all or specific color for each edge, here I used a colormap from matplotlib pos is the layout of the graph

The plot seems to make sense, the notrther countries tend to correlate highly in their 2001 temperature.

# stack data
links = cdf.stack().reset_index()
links.columns = ['var1', 'var2', 'value']



# Keep only correlation over a threshold and remove self correlation (cor(A,A)=1)
links_filtered=links.loc[ (abs(links['value']) > 0.2) & (links['var1'] != links['var2']) ]

# Build your graph
G=nx.from_pandas_edgelist(links_filtered, 'var1', 'var2')

# create edge labels (i.e. correlation coefs)
edge_labels = dict([((n1, n2), round(float(links_filtered.query('var1==@n1 & var2==@n2')["value"]),3))
                for n1, n2 in G.edges])

# create edge widths (proportional to correlation coefs)
edge_widths= np.array([ round(float(links_filtered.query('var1==@n1 & var2==@n2')["value"]),3) for n1, n2 in G.edges])

# Prepare edge color
# choose color paltte here: https://matplotlib.org/stable/tutorials/colors/colormaps.html
norm = matplotlib.colors.Normalize(vmin=-1, vmax=1, clip=True)
mapper = cm.ScalarMappable(norm=norm, cmap=cm.seismic)



# Plot the network:
f, ax = plt.subplots(1,1,figsize=(20, 20))
nx.draw_networkx(G, with_labels=True,
        node_color="peachpuff",
        node_size=8000,
        edge_color=mapper.to_rgba(edge_widths),
        style="solid",
        width=edge_widths*15,
        node_shape="8",
        font_size=11,
        pos=nx.circular_layout(G),
        #pos=nx.kamada_kawai_layout(G),
        ax=ax)


nx.draw_networkx_edge_labels(G, pos=nx.circular_layout(G), edge_labels=edge_labels, ax=ax)

{('Argentina2001',
  'Australia2001'): Text(0.8117449049695933, 0.39091574665765266, '0.762'),
 ('Argentina2001',
  'Canada2001'): Text(0.38873954709122704, 0.48746394302286616, '-0.776'),
 ('Argentina2001',
  'Russia2001'): Text(0.04951560754382245, 0.21694190912785158, '-0.763'),
 ('Argentina2001',
  'Slovakia2001'): Text(0.04951560754382245, -0.21694186229563228, '-0.68'),
 ('Argentina2001',
  'Togo2001'): Text(0.38873951728890566, -0.4874639259929682, '0.502'),
 ('Argentina2001',
  'Uganda2001'): Text(0.8117448155626292, -0.3909157892323974, '0.351'),
 ('Australia2001',
  'Canada2001'): Text(0.2004844520608203, 0.8783796811655699, '-0.931'),
 ('Australia2001',
  'Russia2001'): Text(-0.13873948748658427, 0.6078576472705552, '-0.884'),
 ('Australia2001',
  'Slovakia2001'): Text(-0.13873948748658427, 0.1739738758470714, '-0.837'),
 ('Australia2001',
  'Togo2001'): Text(0.20048442225849894, -0.09654818785026448, '0.648'),
 ('Australia2001',
  'Uganda2001'): Text(0.6234897205322225, -5.1089693697825567e-08, '0.33'),
 ('Canada2001',
  'Russia2001'): Text(-0.5617448453649505, 0.7044058436357687, '0.923'),
 ('Canada2001',
  'Slovakia2001'): Text(-0.5617448453649505, 0.2705220722122849, '0.875'),
 ('Canada2001',
  'Togo2001'): Text(-0.22252093561986735, 8.514949023652463e-09, '-0.717'),
 ('Canada2001',
  'Uganda2001'): Text(0.2004843626538562, 0.0965481452755198, '-0.4'),
 ('Russia2001',
  'Slovakia2001'): Text(-0.9009687849123551, 3.8317270328880326e-08, '0.899'),
 ('Russia2001',
  'Togo2001'): Text(-0.5617448751672719, -0.27052202538006553, '-0.671'),
 ('Russia2001',
  'Uganda2001'): Text(-0.13873957689354838, -0.17397388861949478, '-0.346'),
 ('Slovakia2001',
  'Togo2001'): Text(-0.5617448751672719, -0.7044057968035494, '-0.636'),
 ('Slovakia2001',
  'Uganda2001'): Text(-0.13873957689354838, -0.6078576600429786, '-0.325'),
 ('Togo2001',
  'Uganda2001'): Text(0.20048433285153483, -0.8783797237403146, '0.38')}

../../_images/plotting_graphs_with_python_13_1.png

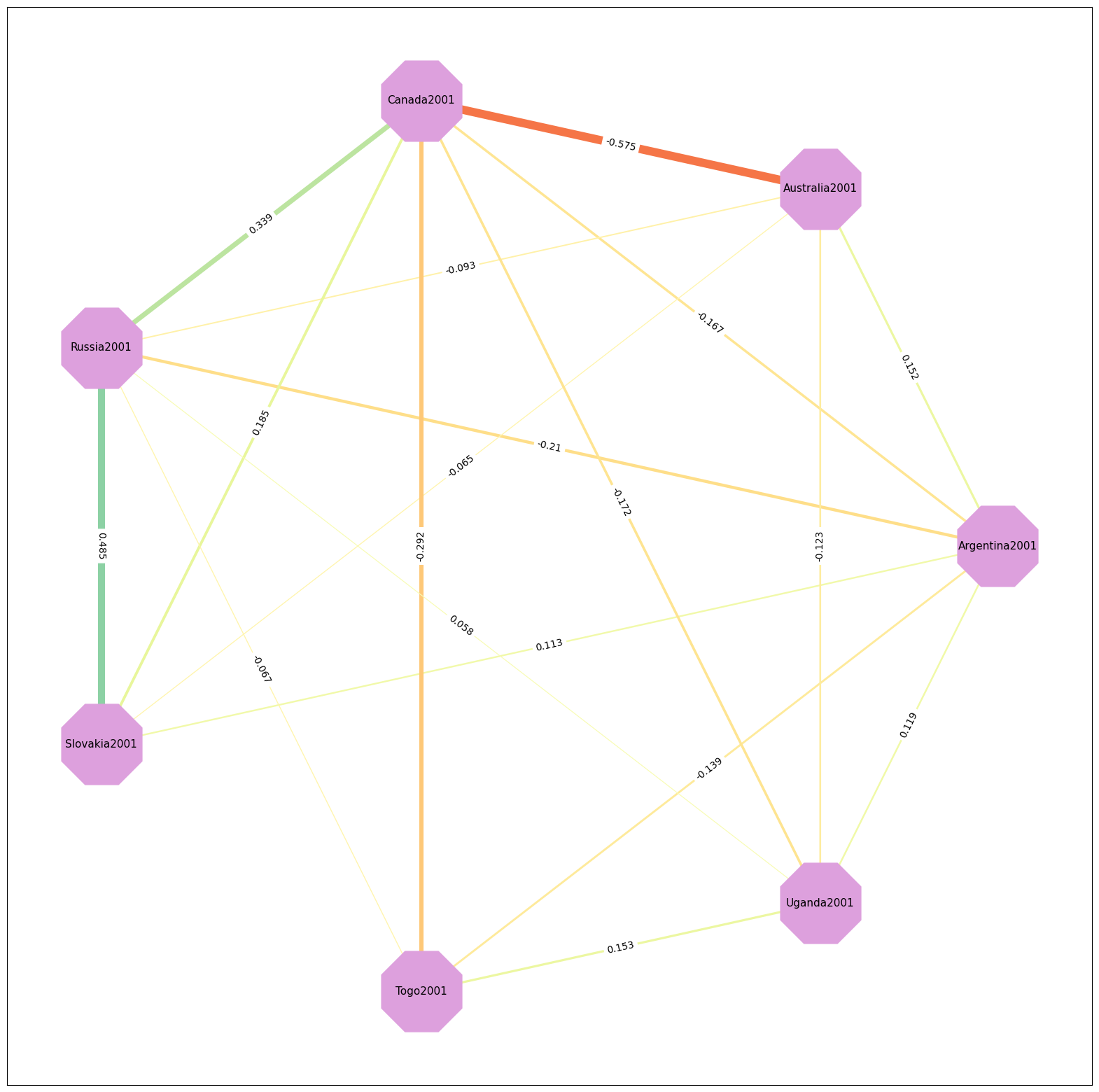

Partial correlation graph#

# stack data
links = pdf.stack().reset_index()
links.columns = ['var1', 'var2', 'value']



# Keep only correlation over a threshold and remove self correlation (cor(A,A)=1)
links_filtered=links.loc[ (abs(links['value']) > 0.05) & (links['var1'] != links['var2']) ]

# Build your graph
G=nx.from_pandas_edgelist(links_filtered, 'var1', 'var2')

# create edge labels (i.e. correlation coefs)
edge_labels = dict([((n1, n2), round(float(links_filtered.query('var1==@n1 & var2==@n2')["value"]),3))
                for n1, n2 in G.edges])

# create edge widths (proportional to correlation coefs)
edge_widths= np.array([ round(float(links_filtered.query('var1==@n1 & var2==@n2')["value"]),3) for n1, n2 in G.edges])

# Prepare edge color
# choose color paltte here: https://matplotlib.org/stable/tutorials/colors/colormaps.html
norm = matplotlib.colors.Normalize(vmin=-1, vmax=1, clip=True)
mapper = cm.ScalarMappable(norm=norm, cmap=cm.Spectral)

# Prepare node colors
nodcol = []
for node in G:
    if ("TF" in node) or ("STAI" in node):
        nodcol.append('plum')
    else:
        nodcol.append('peachpuff')


# Plot the network:
f, ax = plt.subplots(1,1,figsize=(20, 20))
nx.draw_networkx(G, with_labels=True,
        node_color="plum",
        node_size=8000,
        edge_color=mapper.to_rgba(edge_widths),
        #edge_labels=edge_labels,
        style="solid",
        width=edge_widths*15,
        #linewidths=40,#links_filtered["value"]*20,
        node_shape="8",
        font_size=11,
        pos=nx.circular_layout(G),
        #pos=nx.kamada_kawai_layout(G),
        ax=ax)
#divider = make_axes_locatable(ax)
#cax = divider.append_axes("right", size="3%", pad="3%")

nx.draw_networkx_edge_labels(G, pos=nx.circular_layout(G), edge_labels=edge_labels, ax=ax)

{('Argentina2001',
  'Australia2001'): Text(0.8117449049695933, 0.39091574665765266, '0.152'),
 ('Argentina2001',
  'Canada2001'): Text(0.38873954709122704, 0.48746394302286616, '-0.167'),
 ('Argentina2001',
  'Russia2001'): Text(0.04951560754382245, 0.21694190912785158, '-0.21'),
 ('Argentina2001',
  'Slovakia2001'): Text(0.04951560754382245, -0.21694186229563228, '0.113'),
 ('Argentina2001',
  'Togo2001'): Text(0.38873951728890566, -0.4874639259929682, '-0.139'),
 ('Argentina2001',
  'Uganda2001'): Text(0.8117448155626292, -0.3909157892323974, '0.119'),
 ('Australia2001',
  'Canada2001'): Text(0.2004844520608203, 0.8783796811655699, '-0.575'),
 ('Australia2001',
  'Russia2001'): Text(-0.13873948748658427, 0.6078576472705552, '-0.093'),
 ('Australia2001',
  'Slovakia2001'): Text(-0.13873948748658427, 0.1739738758470714, '-0.065'),
 ('Australia2001',
  'Uganda2001'): Text(0.6234897205322225, -5.1089693697825567e-08, '-0.123'),
 ('Canada2001',
  'Russia2001'): Text(-0.5617448453649505, 0.7044058436357687, '0.339'),
 ('Canada2001',
  'Slovakia2001'): Text(-0.5617448453649505, 0.2705220722122849, '0.185'),
 ('Canada2001',
  'Togo2001'): Text(-0.22252093561986735, 8.514949023652463e-09, '-0.292'),
 ('Canada2001',
  'Uganda2001'): Text(0.2004843626538562, 0.0965481452755198, '-0.172'),
 ('Russia2001',
  'Slovakia2001'): Text(-0.9009687849123551, 3.8317270328880326e-08, '0.485'),
 ('Russia2001',
  'Togo2001'): Text(-0.5617448751672719, -0.27052202538006553, '-0.067'),
 ('Russia2001',
  'Uganda2001'): Text(-0.13873957689354838, -0.17397388861949478, '0.058'),
 ('Togo2001',
  'Uganda2001'): Text(0.20048433285153483, -0.8783797237403146, '0.153')}

../../_images/plotting_graphs_with_python_15_1.png

Plotting networks with python

Contents
